Original SCHNORR®
Arandelas de Seguridad para Alta Presión

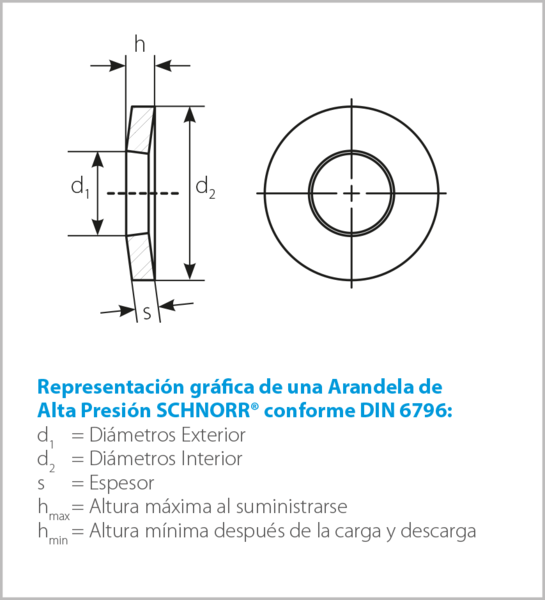

Estas arandelas están normalizadas según DIN 6796, de Octubre de 1987, estando diseñadas para el aseguramiento de uniones atornilladas de altos requerimientos. Al aplanar la arandela cónica
de alta presión y llegando al final de su recorrido compresible se produce un aumento progresivo de la fuerza casi sin recorrido y por ello se indica la fuerza con el valor doble del calculado ya que este valor coincide mejor con el valor real medido experimentalmente para esos puntos.
En el buscador de productos encontrará los muelles de disco fabricados con los siguientes materiales:
- Materiales estándar conforme a DIN EN 10132-4
Otras ejecuciones:
Además también procesamos materiales especiales para requisitos especiales.
Vea al respecto nuestra Tabla res umida de materiales y póngase en contacto con nuestros empleados encargados de la distribución comercial.
Buscador de productos

Disc Springs

Screw & Bolt Locking Systems
Dimensions | Course S / Effort F | Poids | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Cod. Artículo | De [mm] | Di [mm] | t [mm] | t' [mm] | l0 [mm] | h0 [mm] | s [mm] | F [N] | Peso cada 1.000 piezas [kg] | |
000 100 | 6 | 3.2 | 0.3 | 0 | 0.45 | 0.15 | 0.113 | 119 | 0.044 | |
000 200 | 8 | 3.2 | 0.2 | 0 | 0.4 | 0.2 | 0.15 | 26 | 0.064 | |
000 300 | 8 | 3.2 | 0.3 | 0 | 0.55 | 0.25 | 0.188 | 104 | 0.093 | |
000 400 | 8 | 3.2 | 0.4 | 0 | 0.6 | 0.2 | 0.15 | 186 | 0.126 | |
000 550 | 8 | 4.2 | 0.2 | 0 | 0.45 | 0.25 | 0.188 | 39 | 0.055 | |
000 600 | 8 | 4.2 | 0.3 | 0 | 0.55 | 0.25 | 0.188 | 118 | 0.08 | |
000 700 | 8 | 4.2 | 0.4 | 0 | 0.6 | 0.2 | 0.15 | 210 | 0.107 | |
000 800 | 10 | 3.2 | 0.3 | 0 | 0.65 | 0.35 | 0.263 | 98 | 0.157 | |
000 900 | 10 | 3.2 | 0.4 | 0 | 0.7 | 0.3 | 0.225 | 179 | 0.211 | |
001 000 | 10 | 3.2 | 0.5 | 0 | 0.75 | 0.25 | 0.188 | 279 | 0.266 | |
001 100 | 10 | 4.2 | 0.4 | 0 | 0.7 | 0.3 | 0.225 | 189 | 0.193 | |
001 200 | 10 | 4.2 | 0.5 | 0 | 0.75 | 0.25 | 0.188 | 294 | 0.243 | |
001 300 | 10 | 5.2 | 0.25 | 0 | 0.55 | 0.3 | 0.225 | 58 | 0.109 | |
001 400 | 10 | 5.2 | 0.4 | 0 | 0.7 | 0.3 | 0.225 | 209 | 0.17 | |
001 500 | 10 | 5.2 | 0.5 | 0 | 0.75 | 0.25 | 0.188 | 325 | 0.214 | |
001 600 | 12 | 4.2 | 0.4 | 0 | 0.8 | 0.4 | 0.3 | 178 | 0.297 | |
001 700 | 12 | 4.2 | 0.5 | 0 | 0.85 | 0.35 | 0.263 | 284 | 0.374 | |
001 800 | 12 | 4.2 | 0.6 | 0 | 1 | 0.4 | 0.3 | 557 | 0.45 | |
001 900 | 12 | 5.2 | 0.5 | 0 | 0.9 | 0.4 | 0.3 | 350 | 0.345 | |
002 000 | 12 | 5.2 | 0.6 | 0 | 0.95 | 0.35 | 0.263 | 506 | 0.415 |

Screw & Bolt Locking Systems
- 1
- 2
- cargar más
Diamètre | Dimensions | Poids | |||||||
---|---|---|---|---|---|---|---|---|---|
Cod. Artículo | Surface | Diamètre nominal [mm] | D2 [mm] | D1 [mm] | s [mm] | hmin [mm] | hmax [mm] | Peso cada 1.000 piezas [kg] | |
700 000 | Brillante aceitado | 2 | 5 | 2.2 | 0.5 | 0.6 | 0.05 | CAD Download | |
702 110 | Zn12M + pasivación | 2 | 5 | 2.2 | 0.5 | 0.6 | 0.05 | CAD Download | |
700 100 | Brillante aceitado | 2.5 | 6 | 2.7 | 0.61 | 0.72 | 0.089 | CAD Download | |
702 120 | Zn12M + pasivación | 2.5 | 6 | 2.7 | 0.61 | 0.72 | 0.089 | CAD Download | |
700 200 | Brillante aceitado | 3 | 7 | 3.2 | 0.72 | 0.85 | 0.143 | CAD Download | |
702 130 | Zn12M + pasivación | 3 | 7 | 3.2 | 0.72 | 0.85 | 0.143 | CAD Download | |
700 300 | Brillante aceitado | 3.5 | 8 | 3.7 | 0.92 | 1.06 | 0.248 | CAD Download | |
702 140 | Zn12M + pasivación | 3.5 | 8 | 3.7 | 0.92 | 1.06 | 0.248 | CAD Download | |
700 400 | Brillante aceitado | 4 | 9 | 4.3 | 1.12 | 1.3 | 0.385 | CAD Download | |
702 150 | Zn12M + pasivación | 4 | 9 | 4.3 | 1.12 | 1.3 | 0.385 | CAD Download | |
700 500 | Brillante aceitado | 5 | 11 | 5.3 | 1.35 | 1.55 | 0.687 | CAD Download | |
702 160 | Zn12M + pasivación | 5 | 11 | 5.3 | 1.35 | 1.55 | 0.687 | CAD Download | |
700 600 | Brillante aceitado | 6 | 14 | 6.4 | 1.7 | 2 | 1.434 | CAD Download | |
702 170 | Zn12M + pasivación | 6 | 14 | 6.4 | 1.7 | 2 | 1.434 | CAD Download | |
700 700 | Brillante aceitado | 7 | 17 | 7.4 | 2 | 2.3 | 2.527 | CAD Download | |
702 180 | Zn12M + pasivación | 7 | 17 | 7.4 | 2 | 2.3 | 2.527 | CAD Download | |
700 800 | Brillante aceitado | 8 | 18 | 8.4 | 2.24 | 2.6 | 2.993 | CAD Download | |
702 190 | Zn12M + pasivación | 8 | 18 | 8.4 | 2.24 | 2.6 | 2.993 | CAD Download | |
700 900 | Brillante aceitado | 10 | 23 | 10.5 | 2.8 | 3.2 | 6.201 | CAD Download | |
702 200 | Zn12M + pasivación | 10 | 23 | 10.5 | 2.8 | 3.2 | 6.201 | CAD Download |
- 1
- 2
- cargar más
