Original SCHNORR®
Safety Washers type „VS“
The Original SCHNORR® Safety Washer “VS“ can be used with high-strength bolts of the grade 8.8 -10.9 without any restrictions. This extra strong safety washer has a greater thickness for higher pre-tensioning loads. The outside inside diameter as well and the serrations are the same as the “S“ type. It can be delivered for screws M 5 t o M 30.
Within the following product finder you will find disc springs manufactured of the following materials:
- Standard materials (C60S (1.1211))
- Corrosion-resistant materials (X5 CrNi 18-10 (1.4301))
Further versions:
Furthermore, we also manufacture from special materials.
For this, please see our material grade overview table and contact our sales department.
Productfinder
| Ordering Dimensions | Deflection s/Force F | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Article Number | De [mm] | Di [mm] | t [mm] | t' [mm] | l0 [mm] | h0 [mm] | s [mm] | F [N] | Weight per 1000 pieces [kg] | |
| 000 100 | 6 | 3.2 | 0.3 | 0 | 0.45 | 0.15 | 0.113 | 119 | 0.044 | |
| 000 200 | 8 | 3.2 | 0.2 | 0 | 0.4 | 0.2 | 0.15 | 26 | 0.064 | |
| 000 300 | 8 | 3.2 | 0.3 | 0 | 0.55 | 0.25 | 0.188 | 104 | 0.093 | |
| 000 400 | 8 | 3.2 | 0.4 | 0 | 0.6 | 0.2 | 0.15 | 186 | 0.126 | |
| 000 550 | 8 | 4.2 | 0.2 | 0 | 0.45 | 0.25 | 0.188 | 39 | 0.055 | |
| 000 600 | 8 | 4.2 | 0.3 | 0 | 0.55 | 0.25 | 0.188 | 118 | 0.08 | |
| 000 700 | 8 | 4.2 | 0.4 | 0 | 0.6 | 0.2 | 0.15 | 210 | 0.107 | |
| 000 800 | 10 | 3.2 | 0.3 | 0 | 0.65 | 0.35 | 0.263 | 98 | 0.157 | |
| 000 900 | 10 | 3.2 | 0.4 | 0 | 0.7 | 0.3 | 0.225 | 179 | 0.211 | |
| 001 000 | 10 | 3.2 | 0.5 | 0 | 0.75 | 0.25 | 0.188 | 279 | 0.266 | |
| 001 100 | 10 | 4.2 | 0.4 | 0 | 0.7 | 0.3 | 0.225 | 189 | 0.193 | |
| 001 200 | 10 | 4.2 | 0.5 | 0 | 0.75 | 0.25 | 0.188 | 294 | 0.243 | |
| 001 300 | 10 | 5.2 | 0.25 | 0 | 0.55 | 0.3 | 0.225 | 58 | 0.109 | |
| 001 400 | 10 | 5.2 | 0.4 | 0 | 0.7 | 0.3 | 0.225 | 209 | 0.17 | |
| 001 500 | 10 | 5.2 | 0.5 | 0 | 0.75 | 0.25 | 0.188 | 325 | 0.214 | |
| 001 600 | 12 | 4.2 | 0.4 | 0 | 0.8 | 0.4 | 0.3 | 178 | 0.297 | |
| 001 700 | 12 | 4.2 | 0.5 | 0 | 0.85 | 0.35 | 0.263 | 284 | 0.374 | |
| 001 800 | 12 | 4.2 | 0.6 | 0 | 1 | 0.4 | 0.3 | 557 | 0.45 | |
| 001 900 | 12 | 5.2 | 0.5 | 0 | 0.9 | 0.4 | 0.3 | 350 | 0.345 | |
| 002 000 | 12 | 5.2 | 0.6 | 0 | 0.95 | 0.35 | 0.263 | 506 | 0.415 | |
Ordering Dimensions
Deflection s/Force F
Weight

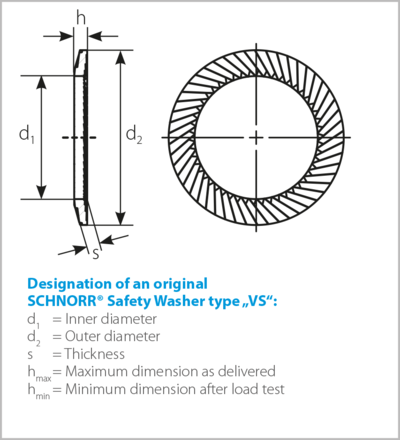

| Size | Ordering dimensions | Weight/Quantity | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Article Number | Surface | Nominal size [mm] | D2 [mm] | D1 [mm] | s [mm] | hmin [mm] | hmax [mm] | Weight per 1000 pieces [kg] | |
| 416 400 | blackened | 6 | 10 | 6.4 | 0.95 | 1.4 | 0.277 | CAD Download | |
| 450 650 | Zn8M + Passivation | 5 | 9 | 5.3 | 0.95 | 1.3 | 0.26 | CAD Download | |
| 414 600 | blackened | 5 | 9 | 5.3 | 0.95 | 1.3 | 0.26 | CAD Download | |
Size
Ordering dimensions
Weight/Quantity
