    Original SCHNORR®

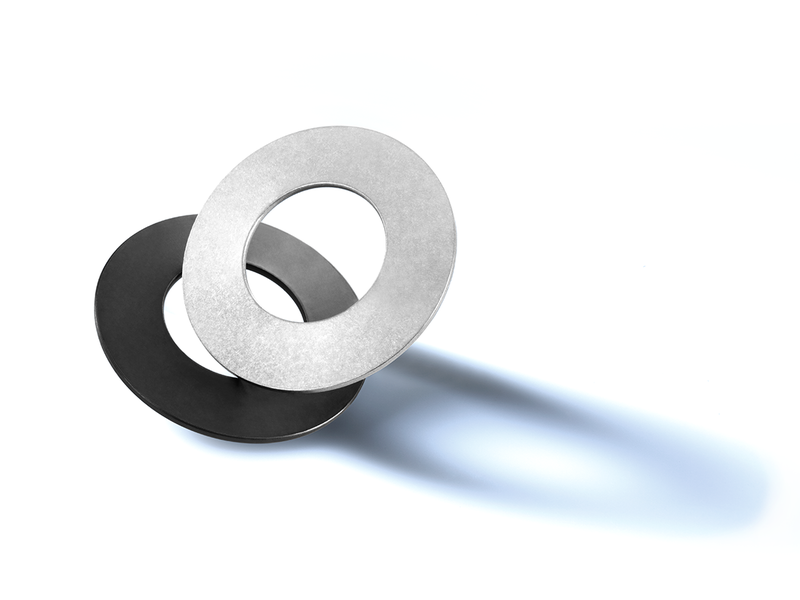

    Disc Springs

    Disc springs support a lot of dynamic processes in a skillful, safe and efficient way – often under extreme force and load conditions.



    Original SCHNORR® disc springs excel by:

    • An optionally linear, degressive or progressive course of the load deflection curve.
    • Long service life with dynamic load.
    • Use of high quality materials.
    • Precise adherence to force and dimension requirements.

    Within the  following product finder you will find disc springs manufactured of the following materials:

    • Standard materials (C75S and 51CrV4)
    • Corrosion-resistant materials (X10 CrNi 18-8)
    • Corrosion-resistant materials (X7 CrNiAl 17-7)



    Further versions:

    Furthermore, we also manufacture from special materials.

    For this, please see our material grade overview table and contact our sales department.

    Productfinder

    Disc Springs

    Screw & Bolt Locking Systems

    Choose a product type
    Standard Steel
    Choose a product type
    Corrosion Resistant Steel

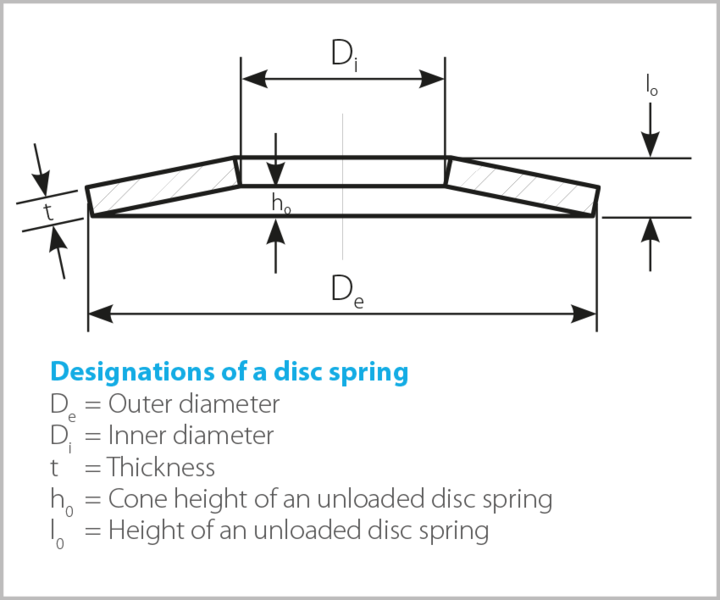

    Outside Diameter
    De
    6 358
    Inside Diameter
    Di
    3.2 242
    Thickness
    t
    0.15 16
    Force
    F
    0 383017
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • load more
    Ordering Dimensions Deflection s/Force F Weight
    Article Number De [mm] Di [mm] t [mm] t' [mm] l0 [mm] h0 [mm] s [mm] F [N] Weight per 1000 pieces [kg]
    169 200 90 46 2.5 0 5.7 3.2 2.4 7087 92.37
    CAD Download
    Add To Cart
    161 220 80 41 2.25 0 5.2 2.95 2.213 6099 65.586
    CAD Download
    Add To Cart
    159 600 80 31 2.5 0 5.3 2.8 2.1 6677 84.001
    CAD Download
    Add To Cart
    153 110 71 36 2.5 0 4.5 2 1.5 6203 57.789
    CAD Download
    Add To Cart
    153 014 71 36 2 0 4.6 2.6 1.95 4744 46.249
    CAD Download
    Add To Cart
    146 250 70 30.5 2.5 0 4.7 2.2 1.65 6653 61.266
    CAD Download
    Add To Cart
    144 401 70 25.5 2 0 4.5 2.5 1.875 4092 52.479
    CAD Download
    Add To Cart
    138 503 63 31 2.5 0 4.15 1.65 1.238 6202 46.389
    CAD Download
    Add To Cart
    138 221 63 31 1.8 0 4.1 2.3 1.725 3792 33.419
    CAD Download
    Add To Cart
    113 193 60 30.5 2.5 0 4 1.5 1.125 6265 41.157
    CAD Download
    Add To Cart
    131 801 60 25.5 2.5 0 4.1 1.6 1.2 6196 45.471
    CAD Download
    Add To Cart
    003 158 60 20.5 2.5 0 4.05 1.55 1.163 5687 49.027
    CAD Download
    Add To Cart
    131 001 60 20.5 2 0 4.1 2.1 1.575 4363 39.235
    CAD Download
    Add To Cart
    128 600 56 28.5 2 0 3.6 1.6 1.2 4093 28.646
    CAD Download
    Add To Cart
    128 599 56 28.5 1.5 0 3.45 1.95 1.463 2419 21.495
    CAD Download
    Add To Cart
    120 801 50 25.4 2.5 0 3.5 1 0.75 5834 28.582
    CAD Download
    Add To Cart
    120 400 50 25.4 2 0 3.3 1.3 0.975 4039 22.878
    CAD Download
    Add To Cart
    120 103 50 25.4 1.5 0 3.1 1.6 1.2 2317 17.168
    CAD Download
    Add To Cart
    014 401 50 25.4 1.25 0 2.85 1.6 1.2 1430 13.792
    CAD Download
    Add To Cart
    003 023 50 22.4 2.5 0 3.5 1 0.75 5478 30.8
    CAD Download
    Add To Cart
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • load more
    Ordering Dimensions
    Deflection s/Force F
    Weight

    Screw & Bolt Locking Systems

    Choose a product type
    Standard Steel
    Choose a product type
    Corrosion Resistant Steel
    Size
    NM
    1.6 36
    Outside Diameter
    D2
    3.2 70
    Inside Diameter
    D1
    1.7 38
    • 1
    • 2
    • 3
    • load more
    Size Ordering dimensions Weight/Quantity
    Article Number Surface Nominal size [mm] D2 [mm] D1 [mm] s [mm] hmin [mm] hmax [mm] Weight per 1000 pieces [kg]
    402 300 blackened 1.6 3.2 1.7 0.4 0.6 0.014 CAD Download
    Add To Cart
    450 000 Gal.Zn8 + Passivation 1.6 3.2 1.7 0.4 0.6 0.014 CAD Download
    Add To Cart
    404 400 blackened 2 4 2.2 0.4 0.6 0.022 CAD Download
    Add To Cart
    450 100 Gal.Zn8 + Passivation 2 4 2.2 0.4 0.6 0.022 CAD Download
    Add To Cart
    406 800 blackened 2.5 4.8 2.7 0.5 0.9 0.04 CAD Download
    Add To Cart
    450 200 Gal.Zn8 + Passivation 2.5 4.8 2.7 0.5 0.9 0.04 CAD Download
    Add To Cart
    409 400 blackened 3 5.5 3.2 0.5 0.9 0.05 CAD Download
    Add To Cart
    450 300 Gal.Zn8 + Passivation 3 5.5 3.2 0.5 0.9 0.05 CAD Download
    Add To Cart
    411 200 blackened 3.5 6 3.7 0.55 0.9 0.05 CAD Download
    Add To Cart
    450 400 Gal.Zn8 + Passivation 3.5 6 3.7 0.55 0.9 0.05 CAD Download
    Add To Cart
    412 700 blackened 4 7 4.3 0.55 1 0.076 CAD Download
    Add To Cart
    450 500 Zn8M + Passivation 4 7 4.3 0.55 1 0.076 CAD Download
    Add To Cart
    414 500 blackened 5 9 5.3 0.6 1.1 0.167 CAD Download
    Add To Cart
    450 600 Zn8M + Passivation 5 9 5.3 0.6 1.1 0.167 CAD Download
    Add To Cart
    416 300 blackened 6 10 6.4 0.7 1.2 0.18 CAD Download
    Add To Cart
    450 700 Zn8M + Passivation 6 10 6.4 0.7 1.2 0.18 CAD Download
    Add To Cart
    418 100 blackened 6.35 9.5 6.7 0.65 1.2 0.135 CAD Download
    Add To Cart
    450 800 Zn8M + Passivation 6.35 9.5 6.7 0.65 1.2 0.135 CAD Download
    Add To Cart
    419 200 blackened 7 12 7.4 0.8 1.3 0.325 CAD Download
    Add To Cart
    450 900 Zn8M + Passivation 7 12 7.4 0.8 1.3 0.325 CAD Download
    Add To Cart
    • 1
    • 2
    • 3
    • load more
    Size
    Ordering dimensions
    Weight/Quantity
