    Original SCHNORR®

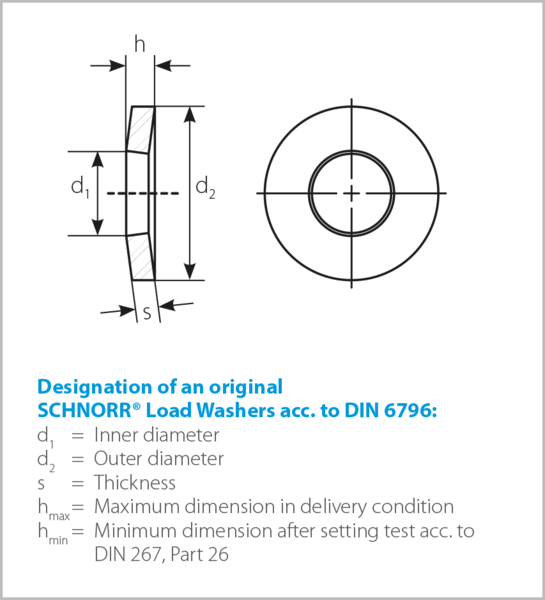

    Load Washers acc. to DIN 6796

    These load washers conform to DIN 6796, edition Oct. 1987, and are designed for high demands on the protection of bolt joints. As a highly progressive load increase occurs at the end of the spring deflection when the load washer is flattenedthe load has been indicated as double the calculated value. Tests have
    shown that these values are comparable with the measured values.

    Within the  following product finder you will find disc springs manufactured of the following materials:

    • Standard materials acc. to DIN EN 10132-4

    Further versions:
    Furthermore, we also manufacture from special materials.
    For this, please see our material grade overview table and contact our sales department.

    Productfinder

    Disc Springs

    Screw & Bolt Locking Systems

    Choose a product type
    Standard Steel
    Choose a product type
    Corrosion Resistant Steel
    Outside Diameter
    De
    6 358
    Inside Diameter
    Di
    3.2 242
    Thickness
    t
    0.15 16
    Force
    F
    0 383017
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • load more
    Ordering Dimensions Deflection s/Force F Weight
    Article Number De [mm] Di [mm] t [mm] t' [mm] l0 [mm] h0 [mm] s [mm] F [N] Weight per 1000 pieces [kg]
    000 100 6 3.2 0.3 0 0.45 0.15 0.113 119 0.044
    CAD Download
    Add To Cart
    000 200 8 3.2 0.2 0 0.4 0.2 0.15 26 0.064
    CAD Download
    Add To Cart
    000 300 8 3.2 0.3 0 0.55 0.25 0.188 104 0.093
    CAD Download
    Add To Cart
    000 400 8 3.2 0.4 0 0.6 0.2 0.15 186 0.126
    CAD Download
    Add To Cart
    000 550 8 4.2 0.2 0 0.45 0.25 0.188 39 0.055
    CAD Download
    Add To Cart
    000 600 8 4.2 0.3 0 0.55 0.25 0.188 118 0.08
    CAD Download
    Add To Cart
    000 700 8 4.2 0.4 0 0.6 0.2 0.15 210 0.107
    CAD Download
    Add To Cart
    000 800 10 3.2 0.3 0 0.65 0.35 0.263 98 0.157
    CAD Download
    Add To Cart
    000 900 10 3.2 0.4 0 0.7 0.3 0.225 179 0.211
    CAD Download
    Add To Cart
    001 000 10 3.2 0.5 0 0.75 0.25 0.188 279 0.266
    CAD Download
    Add To Cart
    001 100 10 4.2 0.4 0 0.7 0.3 0.225 189 0.193
    CAD Download
    Add To Cart
    001 200 10 4.2 0.5 0 0.75 0.25 0.188 294 0.243
    CAD Download
    Add To Cart
    001 300 10 5.2 0.25 0 0.55 0.3 0.225 58 0.109
    CAD Download
    Add To Cart
    001 400 10 5.2 0.4 0 0.7 0.3 0.225 209 0.17
    CAD Download
    Add To Cart
    001 500 10 5.2 0.5 0 0.75 0.25 0.188 325 0.214
    CAD Download
    Add To Cart
    001 600 12 4.2 0.4 0 0.8 0.4 0.3 178 0.297
    CAD Download
    Add To Cart
    001 700 12 4.2 0.5 0 0.85 0.35 0.263 284 0.374
    CAD Download
    Add To Cart
    001 800 12 4.2 0.6 0 1 0.4 0.3 557 0.45
    CAD Download
    Add To Cart
    001 900 12 5.2 0.5 0 0.9 0.4 0.3 350 0.345
    CAD Download
    Add To Cart
    002 000 12 5.2 0.6 0 0.95 0.35 0.263 506 0.415
    CAD Download
    Add To Cart
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • load more
    Ordering Dimensions
    Deflection s/Force F
    Weight

    Screw & Bolt Locking Systems

    Choose a product type
    Standard Steel
    Choose a product type
    Corrosion Resistant Steel
    Size
    NM
    1.6 36
    Outside Diameter
    D2
    3.2 70
    Inside Diameter
    D1
    1.7 38
    • 1
    • 2
    • load more
    Size Ordering dimensions Weight/Quantity
    Article Number Surface Nominal size [mm] D2 [mm] D1 [mm] s [mm] hmin [mm] hmax [mm] Weight per 1000 pieces [kg]
    700 000 blank, oiledöl 2 5 2.2 0.5 0.6 0.05 CAD Download
    Add To Cart
    702 110 Zn12M + Passivation 2 5 2.2 0.5 0.6 0.05 CAD Download
    Add To Cart
    700 100 blank, oiledöl 2.5 6 2.7 0.61 0.72 0.089 CAD Download
    Add To Cart
    702 120 Zn12M + Passivation 2.5 6 2.7 0.61 0.72 0.089 CAD Download
    Add To Cart
    700 200 blank, oiledöl 3 7 3.2 0.72 0.85 0.143 CAD Download
    Add To Cart
    702 130 Zn12M + Passivation 3 7 3.2 0.72 0.85 0.143 CAD Download
    Add To Cart
    700 300 blank, oiledöl 3.5 8 3.7 0.92 1.06 0.248 CAD Download
    Add To Cart
    702 140 Zn12M + Passivation 3.5 8 3.7 0.92 1.06 0.248 CAD Download
    Add To Cart
    700 400 blank, oiledöl 4 9 4.3 1.12 1.3 0.385 CAD Download
    Add To Cart
    702 150 Zn12M + Passivation 4 9 4.3 1.12 1.3 0.385 CAD Download
    Add To Cart
    700 500 blank, oiledöl 5 11 5.3 1.35 1.55 0.687 CAD Download
    Add To Cart
    702 160 Zn12M + Passivation 5 11 5.3 1.35 1.55 0.687 CAD Download
    Add To Cart
    700 600 blank, oiledöl 6 14 6.4 1.7 2 1.434 CAD Download
    Add To Cart
    702 170 Zn12M + Passivation 6 14 6.4 1.7 2 1.434 CAD Download
    Add To Cart
    700 700 blank, oiledöl 7 17 7.4 2 2.3 2.527 CAD Download
    Add To Cart
    702 180 Zn12M + Passivation 7 17 7.4 2 2.3 2.527 CAD Download
    Add To Cart
    700 800 blank, oiledöl 8 18 8.4 2.24 2.6 2.993 CAD Download
    Add To Cart
    702 190 Zn12M + Passivation 8 18 8.4 2.24 2.6 2.993 CAD Download
    Add To Cart
    700 900 blank, oiledöl 10 23 10.5 2.8 3.2 6.201 CAD Download
    Add To Cart
    702 200 Zn12M + Passivation 10 23 10.5 2.8 3.2 6.201 CAD Download
    Add To Cart
    • 1
    • 2
    • load more
    Size
    Ordering dimensions
    Weight/Quantity
