    1. Schnorr GmbH
    2. Products
    3. Safety Washers
    4. Safety Washers Type „S”

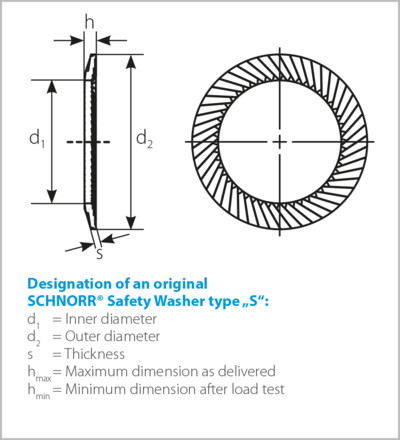

    The original SCHNORR®

    Safety Washer type „S”

    The Original SCHNORR® safety washer „S“ is suitable for normal requirements and available for bolt sizes from M 1,6 to M 36 in grades up to 8.8.

    Within the  following product finder you will find disc springs manufactured of the following materials:

    • Standard materials (C60S (1.1211))
    • Corrosion-resistant materials (X5 CrNi 18-10 (1.4301))



    Further versions:
    Furthermore, we also manufacture from special materials.
    For this, please see our material grade overview table and contact our sales department.

    Productfinder

    Disc Springs

    Screw & Bolt Locking Systems

    Choose a product type
    Standard Steel
    Choose a product type
    Corrosion Resistant Steel
    Outside Diameter
    De
    6 358
    Inside Diameter
    Di
    3.2 242
    Thickness
    t
    0.15 16
    Force
    F
    0 383017
    • load more
    Ordering Dimensions Deflection s/Force F Weight
    Article Number De [mm] Di [mm] t [mm] t' [mm] l0 [mm] h0 [mm] s [mm] F [N] Weight per 1000 pieces [kg]
    002 100 12 6.2 0.5 0 0.85 0.35 0.263 326 0.31
    CAD Download
    Add To Cart
    002 200 12 6.2 0.6 0 0.95 0.35 0.263 552 0.373
    CAD Download
    Add To Cart
    002 300 12.5 5.2 0.5 0 0.85 0.35 0.263 272 0.382
    CAD Download
    Add To Cart
    002 050 12.5 6.2 0.35 0 0.8 0.45 0.338 151 0.251
    CAD Download
    Add To Cart
    002 500 12.5 6.2 0.5 0 0.85 0.35 0.263 293 0.346
    CAD Download
    Add To Cart
    002 700 12.5 6.2 0.7 0 1 0.3 0.225 660 0.488
    CAD Download
    Add To Cart
    002 750 14 7.2 0.35 0 0.8 0.45 0.338 123 0.308
    CAD Download
    Add To Cart
    002 800 14 7.2 0.5 0 0.9 0.4 0.3 279 0.425
    CAD Download
    Add To Cart
    002 900 14 7.2 0.8 0 1.1 0.3 0.225 797 0.676
    CAD Download
    Add To Cart
    003 000 15 5.2 0.4 0 0.95 0.55 0.413 176 0.468
    CAD Download
    Add To Cart
    003 100 15 5.2 0.5 0 1 0.5 0.375 278 0.588
    CAD Download
    Add To Cart
    003 200 15 5.2 0.6 0 1.05 0.45 0.338 407 0.708
    CAD Download
    Add To Cart
    003 300 15 5.2 0.7 0 1.1 0.4 0.3 555 0.828
    CAD Download
    Add To Cart
    003 500 15 6.2 0.5 0 1 0.5 0.375 289 0.553
    CAD Download
    Add To Cart
    003 600 15 6.2 0.6 0 1.05 0.45 0.338 424 0.665
    CAD Download
    Add To Cart
    003 700 15 6.2 0.7 0 1.1 0.4 0.3 578 0.778
    CAD Download
    Add To Cart
    003 800 15 8.2 0.7 0 1.1 0.4 0.3 666 0.654
    CAD Download
    Add To Cart
    003 900 15 8.2 0.8 0 1.2 0.4 0.3 982 0.74
    CAD Download
    Add To Cart
    004 100 16 8.2 0.4 0 0.9 0.5 0.375 154 0.444
    CAD Download
    Add To Cart
    004 300 16 8.2 0.6 0 1.05 0.45 0.338 410 0.672
    CAD Download
    Add To Cart
    • load more
    Ordering Dimensions
    Deflection s/Force F
    Weight

    Screw & Bolt Locking Systems

    Choose a product type
    Standard Steel
    Choose a product type
    Corrosion Resistant Steel
    Size
    NM
    1.6 36
    Outside Diameter
    D2
    3.2 70
    Inside Diameter
    D1
    1.7 38
    • load more
    Size Ordering dimensions Weight/Quantity
    Article Number Surface Nominal size [mm] D2 [mm] D1 [mm] s [mm] hmin [mm] hmax [mm] Weight per 1000 pieces [kg]
    412 500 3.5 6 3.7 0.75 1.15 0.082 CAD Download
    Add To Cart
    410 750 3 5.5 3.2 0.55 0.95 0.046 CAD Download
    Add To Cart
    407 660 2.5 4.8 2.7 0.55 0.95 0.039 CAD Download
    Add To Cart
    405 420 2 4 2.2 0.55 0.75 0.032 CAD Download
    Add To Cart
    403 221 1.6 3.2 1.7 0.55 0.75 0.016 CAD Download
    Add To Cart
    452 500 Zn8M + Passivation 36 54 38 3.2 4.2 21.14 CAD Download
    Add To Cart
    442 730 blackened 36 54 38 3.2 4.2 21.14 CAD Download
    Add To Cart
    452 400 Zn8M + Passivation 30 45 31.6 2.6 3.6 10 CAD Download
    Add To Cart
    441 500 blackened 30 45 31.6 2.6 3.6 10 CAD Download
    Add To Cart
    452 300 Zn8M + Passivation 27 39 28.6 2.35 3.1 6.8 CAD Download
    Add To Cart
    440 300 blackened 27 39 28.6 2.35 3.1 6.8 CAD Download
    Add To Cart
    452 200 Zn8M + Passivation 25.4 38 27 2.35 3.1 6.77 CAD Download
    Add To Cart
    439 200 blackened 25.4 38 27 2.35 3.1 6.77 CAD Download
    Add To Cart
    452 100 Zn8M + Passivation 24 36 25.6 2.15 2.9 5.48 CAD Download
    Add To Cart
    437 900 blackened 24 36 25.6 2.15 2.9 5.48 CAD Download
    Add To Cart
    452 000 Zn8M + Passivation 22 33 23 1.95 2.7 4.2 CAD Download
    Add To Cart
    436 600 blackened 22 33 23 1.95 2.7 4.2 CAD Download
    Add To Cart
    451 900 Zn8M + Passivation 20 30 21 1.85 2.5 3.42 CAD Download
    Add To Cart
    435 100 blackened 20 30 21 1.85 2.5 3.42 CAD Download
    Add To Cart
    451 800 Zn8M + Passivation 19 30 20 1.9 2.5 3.79 CAD Download
    Add To Cart
    • load more
    Size
    Ordering dimensions
    Weight/Quantity
