    The original SCHNORR®

    HS-Washer

    This bolt locking device is, in principle, a load washer with a smaller outer diameter than those acc. to DIN 6796. A notable feature of these washers is the slightly curved form which provides a progressively increasing characteristic curve. Despite the smaller outside diameter dimensions this makes it possible to achieve the same load as the load washers acc. to DIN 6796. These washers are primarily used when the space available is insufficient for standardised load washers.

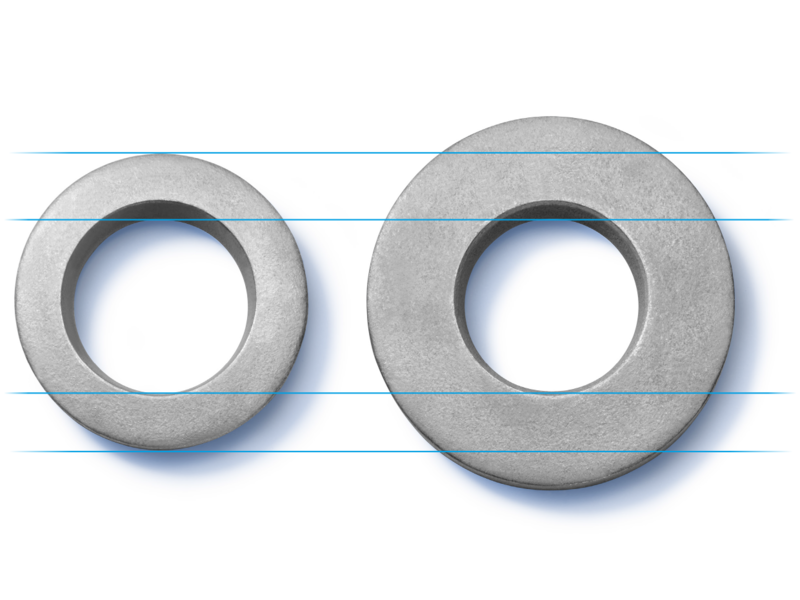

    For comparison

    HS-Washer vs. load washers acc. to DIN 6796

    Within the  following product finder you will find disc springs manufactured of the following materials:

    • Standard materials acc. to DIN EN 10132-4

    Further versions:
    Furthermore, we also manufacture from special materials.
    For this, please see our material grade overview table and contact our sales department.

    Productfinder

    Disc Springs

    Screw & Bolt Locking Systems

    Choose a product type
    Standard Steel
    Choose a product type
    Corrosion Resistant Steel
    Outside Diameter
    De
    6 358
    Inside Diameter
    Di
    3.2 242
    Thickness
    t
    0.15 16
    Force
    F
    0 383017
    • load more
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • load more
    Ordering Dimensions Deflection s/Force F Weight
    Article Number De [mm] Di [mm] t [mm] t' [mm] l0 [mm] h0 [mm] s [mm] F [N] Weight per 1000 pieces [kg]
    008 600 25 10.2 1 0 1.75 0.75 0.563 1172 3.105
    CAD Download
    Add To Cart
    008 700 25 12.2 0.7 0 1.6 0.9 0.675 600 1.994
    CAD Download
    Add To Cart
    008 800 25 12.2 0.9 0 1.6 0.7 0.525 862 2.543
    CAD Download
    Add To Cart
    008 900 25 12.2 1 0 1.8 0.8 0.6 1359 2.832
    CAD Download
    Add To Cart
    509 000 25 12.2 1.25 0 1.95 0.7 0.525 2214 3.526
    CAD Download
    Add To Cart
    509 100 25 12.2 1.5 0 2.05 0.55 0.413 2926 4.219
    CAD Download
    Add To Cart
    009 200 28 10.2 0.8 0 1.75 0.95 0.713 662 3.233
    CAD Download
    Add To Cart
    009 300 28 10.2 1 0 1.9 0.9 0.675 1130 4.062
    CAD Download
    Add To Cart
    509 400 28 10.2 1.25 0 2.05 0.8 0.6 1853 5.057
    CAD Download
    Add To Cart
    509 500 28 10.2 1.5 0 2.2 0.7 0.525 2723 6.051
    CAD Download
    Add To Cart
    009 600 28 12.2 1 0 1.95 0.95 0.713 1268 3.789
    CAD Download
    Add To Cart
    509 700 28 12.2 1.25 0 2.1 0.85 0.638 2083 4.717
    CAD Download
    Add To Cart
    509 800 28 12.2 1.5 0 2.25 0.75 0.563 3077 5.645
    CAD Download
    Add To Cart
    009 900 28 14.2 0.8 0 1.8 1 0.75 801 2.76
    CAD Download
    Add To Cart
    010 000 28 14.2 1 0 1.8 0.8 0.6 1107 3.468
    CAD Download
    Add To Cart
    510 100 28 14.2 1.25 0 2.1 0.85 0.638 2240 4.317
    CAD Download
    Add To Cart
    510 200 28 14.2 1.5 0 2.15 0.65 0.488 2841 5.166
    CAD Download
    Add To Cart
    010 300 31.5 12.2 1 0 2.1 1.1 0.825 1167 5.035
    CAD Download
    Add To Cart
    510 400 31.5 12.2 1.25 0 2.2 0.95 0.713 1805 6.268
    CAD Download
    Add To Cart
    510 500 31.5 12.2 1.5 0 2.35 0.85 0.638 2688 7.501
    CAD Download
    Add To Cart
    • load more
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • load more
    Ordering Dimensions
    Deflection s/Force F
    Weight

    Screw & Bolt Locking Systems

    Choose a product type
    Standard Steel
    Choose a product type
    Corrosion Resistant Steel
    Size
    NM
    1.6 36
    Outside Diameter
    D2
    3.2 70
    Inside Diameter
    D1
    1.7 38
    • widget.pagination.previous
    • 1
    • 2

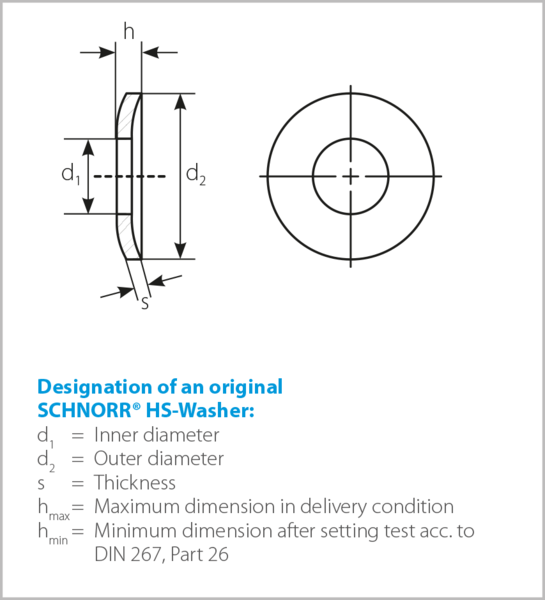

    Size Ordering dimensions Weight/Quantity
    Article Number Surface Nominal size [mm] D2 [mm] D1 [mm] s [mm] hmin [mm] hmax [mm] Weight per 1000 pieces [kg]
    440 100 Phosphated and oiled 27 50 28 7 8 66.94 CAD Download
    Add To Cart
    431 610 Zn20M + Passivation 27 50 28 7 8 66.94 CAD Download
    Add To Cart
    442 650 Phosphated and oiled 30 58 31 7.65 8.9 101 CAD Download
    Add To Cart
    431 620 Zn20M + Passivation 30 58 31 7.65 8.9 101 CAD Download
    Add To Cart
    • widget.pagination.previous
    • 1
    • 2
    Size
    Ordering dimensions
    Weight/Quantity
